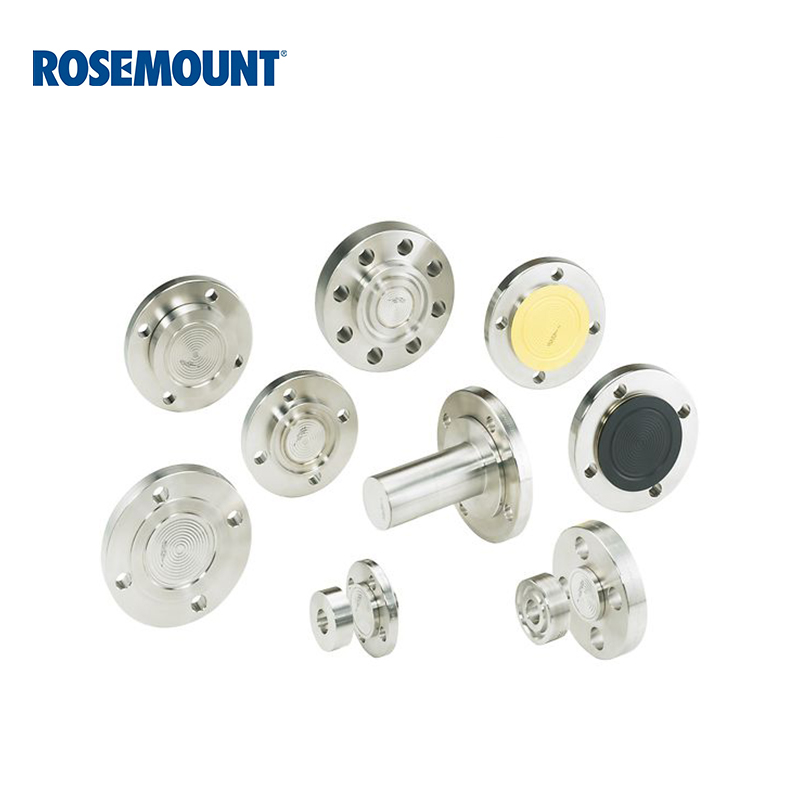

Emerson 1199 Diaphragm Sealing System

Protect the transmitter diaphragm from corrosion, erosion, or extreme process temperatures; Various seals meet different process requirements and specification standards, including industry-specific applications; SIL 2/3 certification of IEC 61508 (implemented through third-party) and pre use certification of FMEDA data for safe installation; No need to install hardware, reducing installation costs; Adjustable direct installation gauge pressure or absolute sealing system suitable for pressurized or ventilated storage tank applications; Compared to traditional installations, the adjustable system can reduce temperature effects by 10-20% and increase reaction time by 80%.

Measurement principle:The Rosemount 1199 diaphragm sealing system can protect the transmitter diaphragm from the effects of cold, hot, corrosive, or viscous processes. It is available in four types: direct installation (suitable for conventional applications), remote installation (suitable for harsh environments), adjustable system (suitable for complex operating conditions), and balancing system (suitable for high static pressure environments). The 1199 seal can be connected to Rosemount 3051, 2051, 2088 pressure transmitters, WPG wireless pressure gauges, and SPG smart pressure gauges.

Product positioning:Supporting attachments

Usage scenario:Rosemount 1199 diaphragm sealing system is widely used in various industrial fields:

·Oil and gas: Protect transmitters from corrosive media during oil and gas extraction and processing.

·Chemical industry: In chemical production, ensure the stable operation of measuring equipment and adapt to various corrosive environments.

·Food and Beverage: In food processing, protect the transmitter from damage caused by high temperatures and viscous media.

·Electricity: In power plants, reliable remote measurement functions are provided to ensure the normal operation of power generation equipment.
