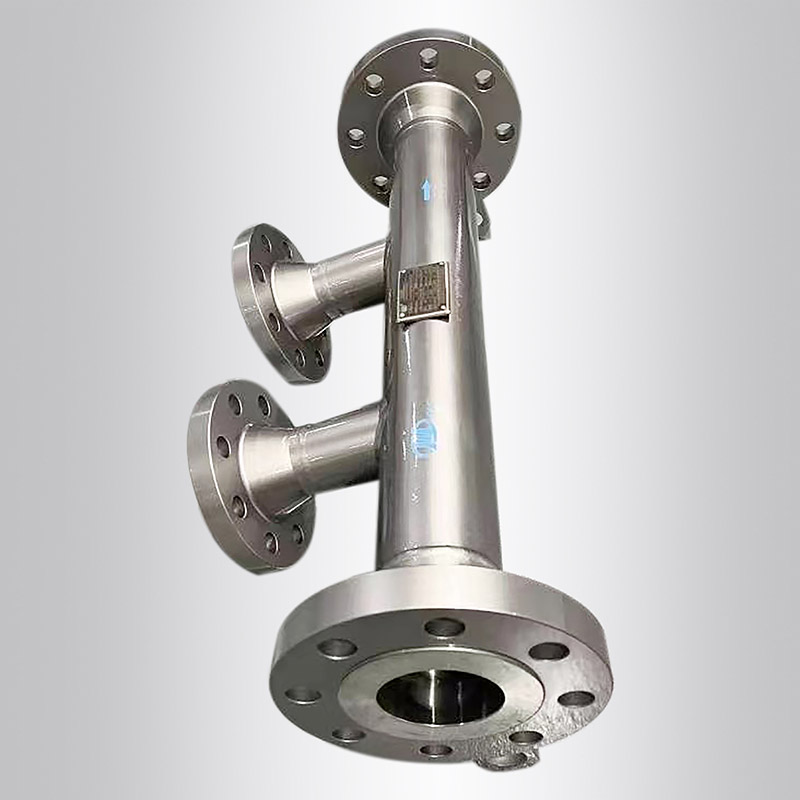

Chongqing chuanyi Rectangular flowmeter

A rectangular flowmeter is a throttling component that generates differential pressure signals. According to fluid mechanics equations, the flow rate of a fluid can be accurately measured based on the relationship between the differential pressure signal and the flow rate

Main parameters

Flow measurement accuracy Class 1.0 (can be calibrated to Class 0.25)

Diameter range DN25-DN600

Medium temperature -196 º C~+600 º C

Nominal pressure 0.25~42MPa

Range ratio Turndown ratio 2:1 to 10:1

Product Features

1. Wear resistant and have a long lifespan

2. Low pressure loss

3. Small installation space

4. High precision, can be calibrated up to 0.25%

5. Range width ratio
