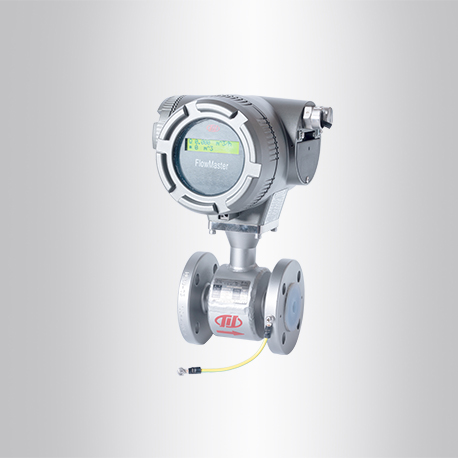

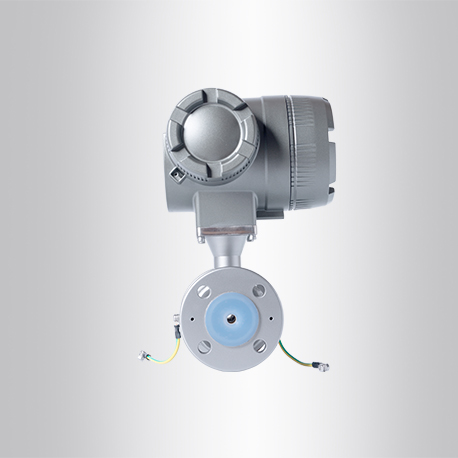

MFD slurry type electromagnetic flowmeter

Main parameters

Diameter range DN25~DN400

Accuracy class 0.5

Medium temperature -25 ℃~180 ℃ (non explosion proof) -25 ° C~180 ° C (non explosion proof)

Protection level IP rating IP67

Product Features

1. Measurement of high medium concentration: Multi frequency square wave excitation method ensures measurement accuracy and sensitivity.

2. Fast response speed: response speed ≥ 0.8s, with adaptive damping coefficient capability.

3. Low conductivity requirement: It is less affected by medium viscosity, temperature, pressure, density, etc., and can measure liquids with a conductivity of 2 μ S/cm.

4. Strong anti-interference ability: Unique noise processing technology and digital filtering can filter out interference caused by dirt attached to pipelines and electrodes.

5. Rich display content: can display total amount, instantaneous flow rate, flow rate, percentage flow rate and other content.

MFD slurry type electromagnetic flowmeter is specifically designed for measuring slurry media such as pulp, slurry, slurry, coal water slurry, etc. The product adopts a multi frequency excitation method, effectively improving its ability to resist slurry noise signals, with good stability and easy operation. The measured concentration can reach 5% to 10%.
