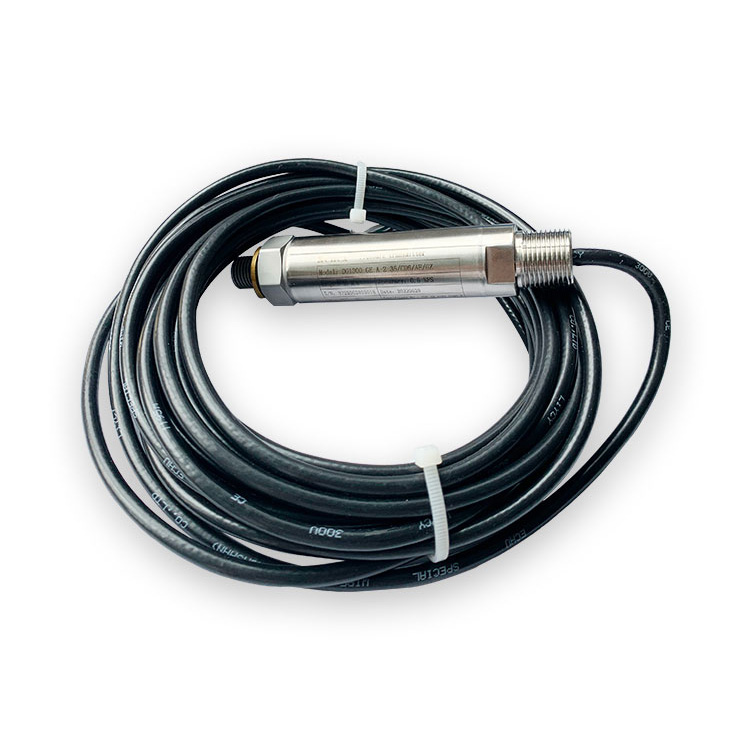

SENEX DG1300-GE Flameproof Pressure Sensor

Measuring range: 0~250MPa

Accuracy: 1%F.S., 0.5%F.S., 0.25%F.S., 0.1%F.S

Output signal: 4-20mADC (two-wire system) 0~10VDC

Process connection: M20X1.5, M12X1, G1/4, G1/2 male threads, etc

Electrical connection: Four-core shielded cable, DIN connector

Overload pressure: 2 times the measuring range

Operating temperature: -30~85℃

Storage temperature: -40~90℃

Service life: greater than 10 million pressure cycle loadings

Protection level: IP65

Product certifications: SIL certification, voluntary explosion-proof CQC certification, ISO system certification, CE certification
