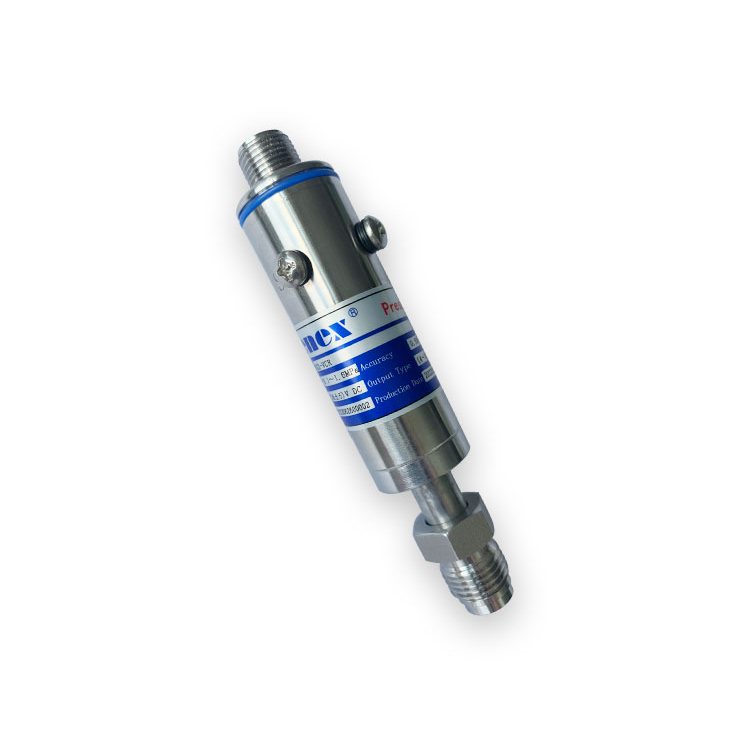

SENEX VCR High-Purity Pressure Sensor

Measuring range: 0~200psi, 0~250psi, 0~500psi, 0~1500psi, 0~3000psi

Accuracy: ±0.25%F.S., ±0.5%F.S

Output signal: 4~20mA (adjustable), 0.5~4.5V, 0~5V, 1~5V, 0~10V, etc

Process connection 1/4VCR

Electrical connection M12X1 connector

Overload pressure: 2 times the rated pressure (up to 5000psi)

Operating temperature: -20~85℃

Storage temperature: -40~125℃

Service life: greater than 10 million pressure cycles

Protection level: IP67

Product certification: Ex ec IIC T6 Gc
