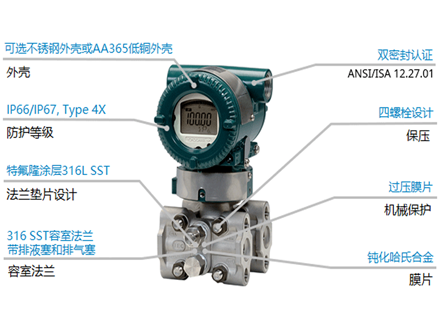

Yokogawa EJA110E differential pressure transmitter

The EJA110E high-performance differential pressure transmitter adopts monocrystalline silicon resonant sensor technology, which is suitable for measuring the flow rate, liquid level, density, and pressure of liquids, gases, or vapors. The EJA110E converts measured differential pressure into a 4-20mA DC current signal output, which can measure, display, or remotely monitor static pressure. It has functions such as fast response, remote setting, and self diagnosis.

The EJA-E series transmitters are designed in accordance with the IEC61508:2010 (Parts 1-7) and IEC61511:2004 (Parts 1-3) standards and have obtained certification. Each unit meets SIL2 safety requirements, and redundant use meets SIL3 safety requirements. By using the EJA/EJX series transmitters, one can meet production applications and safety requirements without the need for redundant configuration.

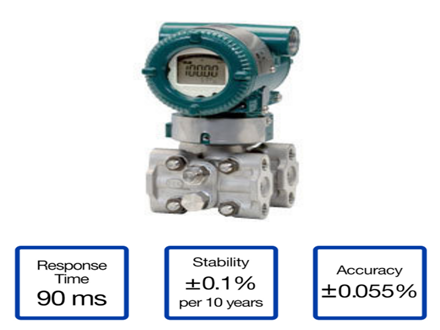

The EJA110E features include:

Accuracy ± 0.055% (optional accuracy ± 0.04%)

Stability ± 0.1% URL/10 years

Response time of 90 milliseconds

TUV and Exida SIL 2/SIL3 certification

Maximum working pressure 2300 psi (optional 3600 psi)

Local parameter settings (LPS)

Provide communication protocols such as HART 5/7, HART (1-5V DC) low-power type, FF fieldbus, PROFIBUS PA, and BRAN.
