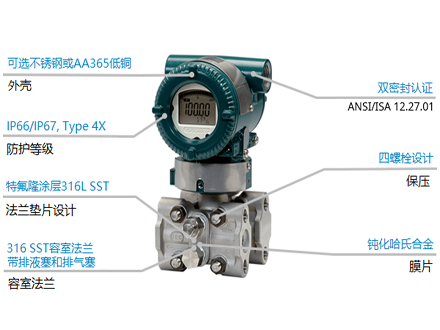

Yokogawa EJA310E Absolute Pressure Transmitter

The EJA310E high-performance absolute pressure transmitter adopts single crystal silicon resonant sensing technology, which is suitable for measuring the pressure of liquids, gases, or vapors. EJA310E converts measured pressure into 4-20mA DC current signal output, with functions such as fast response, remote setting, and self diagnosis.

The EJA-E series transmitters are designed in accordance with the IEC61508:2010 (Parts 1-7) and IEC61511:2004 (Parts 1-3) standards and have obtained certification. Each unit meets SIL2 safety requirements, and redundant use meets SIL3 safety requirements.

The functional features of EJA310E include:

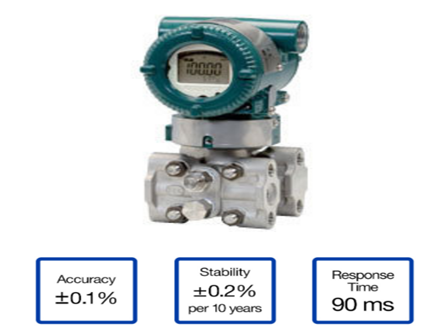

Accuracy ± 0.1%

Stability ± 0.2% URL/10 years

Response time of 90 milliseconds

TUV and Exida SIL2/SIL3 certification

Maximum working pressure 3600 psi

Local parameter settings (LPS)

Provide communication protocols such as HART 5/7, HART (1-5V DC) low-power type, FF fieldbus, PROFIBUS PA, and BRAN.
