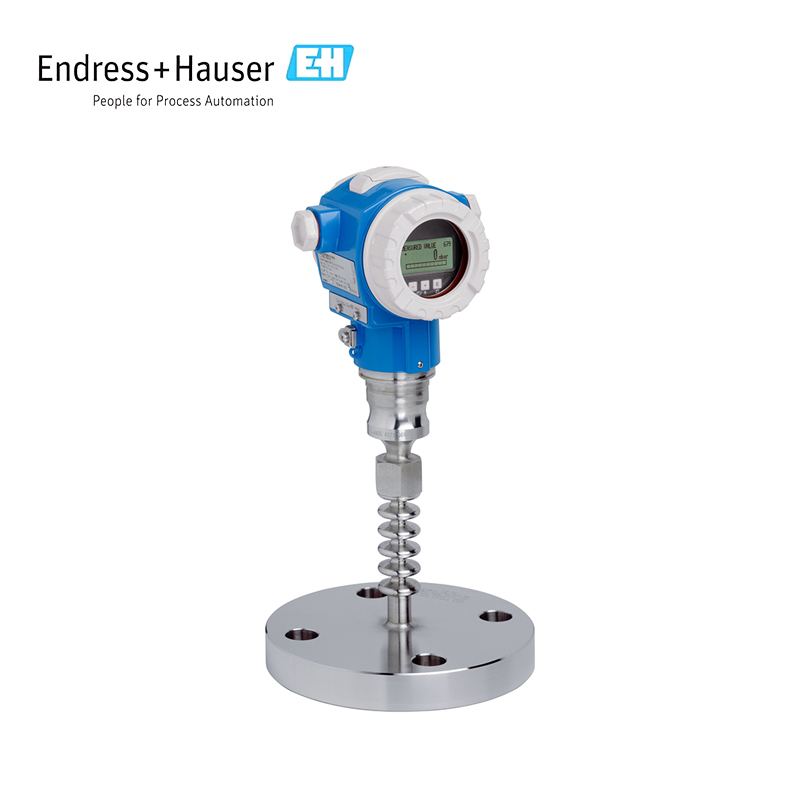

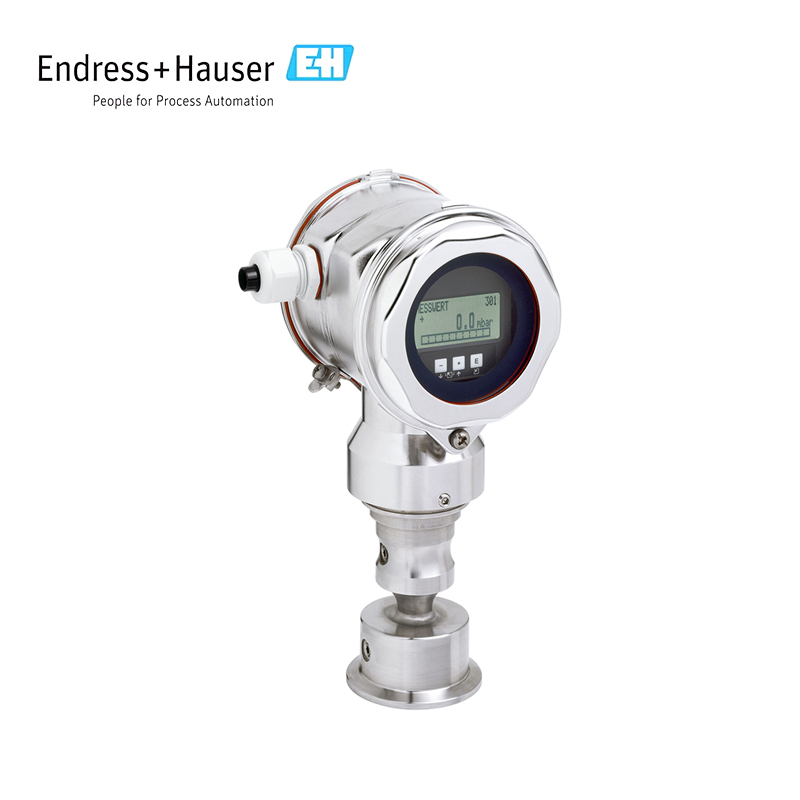

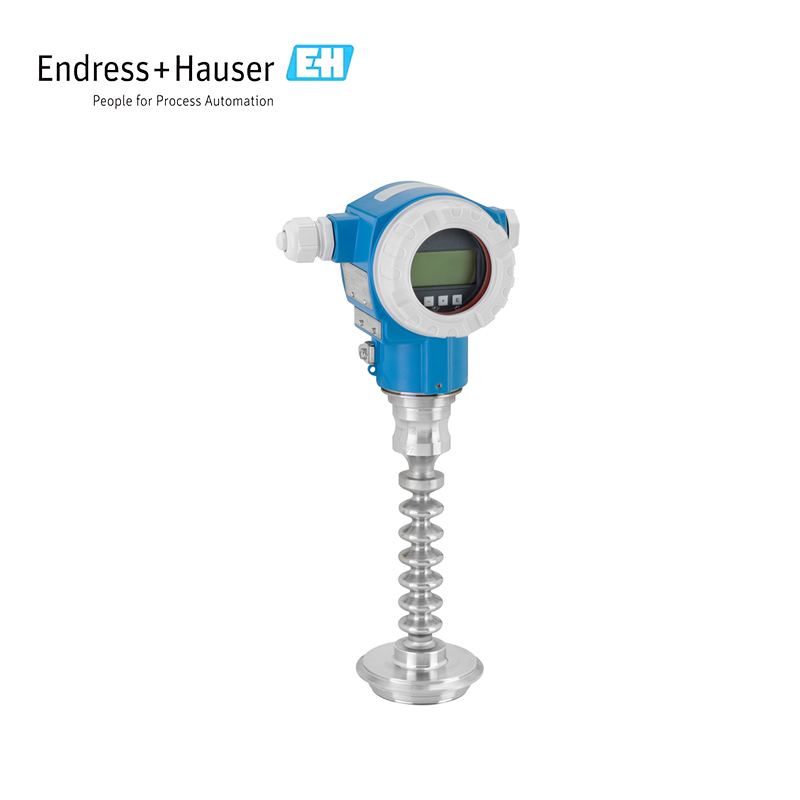

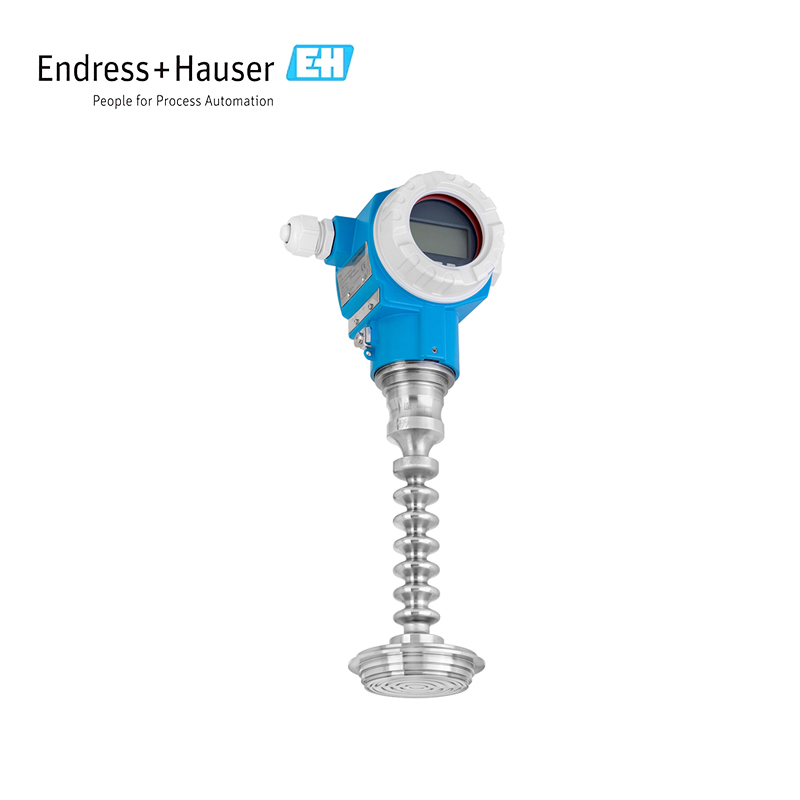

Endress Hauser PMP75 Pressure transmitter

Measurement principle:

Product positioning:

Usage scenario:The Ceraba PMP75 digital pressure transmitter, sealed with a metal diaphragm, is primarily used in the process industry and healthcare sector. It is capable of measuring pressure, liquid level, volume, and mass of liquids or gases. The transmitter is suitable for high-temperature and high-pressure applications, with a temperature range of -70 to 400 °C. Its measurement range is adjustable and can be quickly set, saving both cost and time. The design complies with the IEC61508 standard SIL2/3 functional safety system.

Dual-chamber aluminum or stainless steel (316L) housing

Process connection: threaded, flanged, or sanitary connection

Temperature range: -70 to +400°C (-94 to +752°F)

Pressure range: +100mbar to +400bar (+1.5 to +5.800psi)

Accuracy error: ±0.075%

International explosion-proof protection certification, WHG overfill protection, EN 10204-3.1, maritime certification, 3A certification
