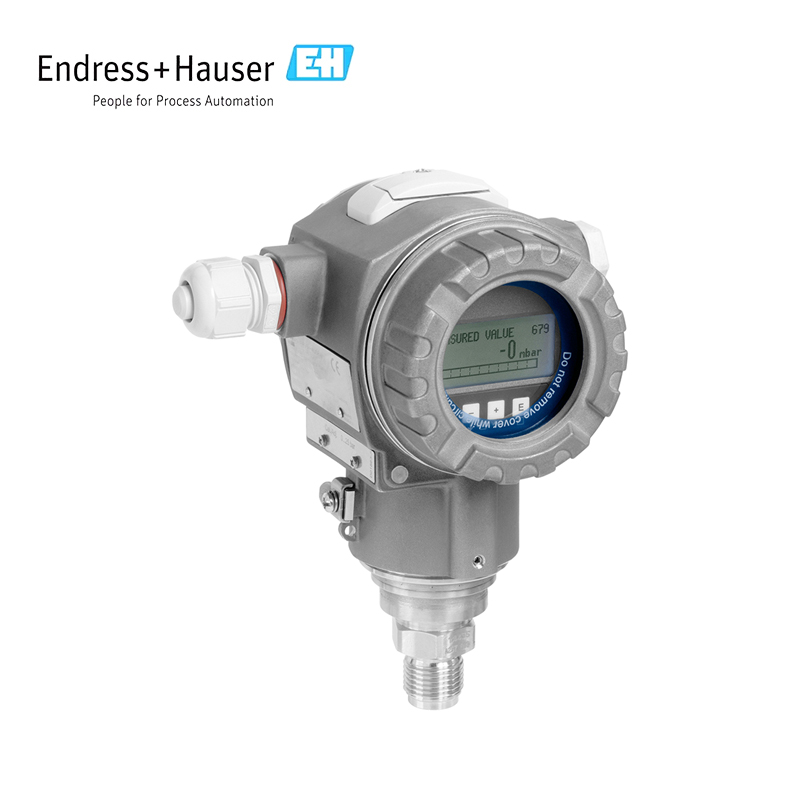

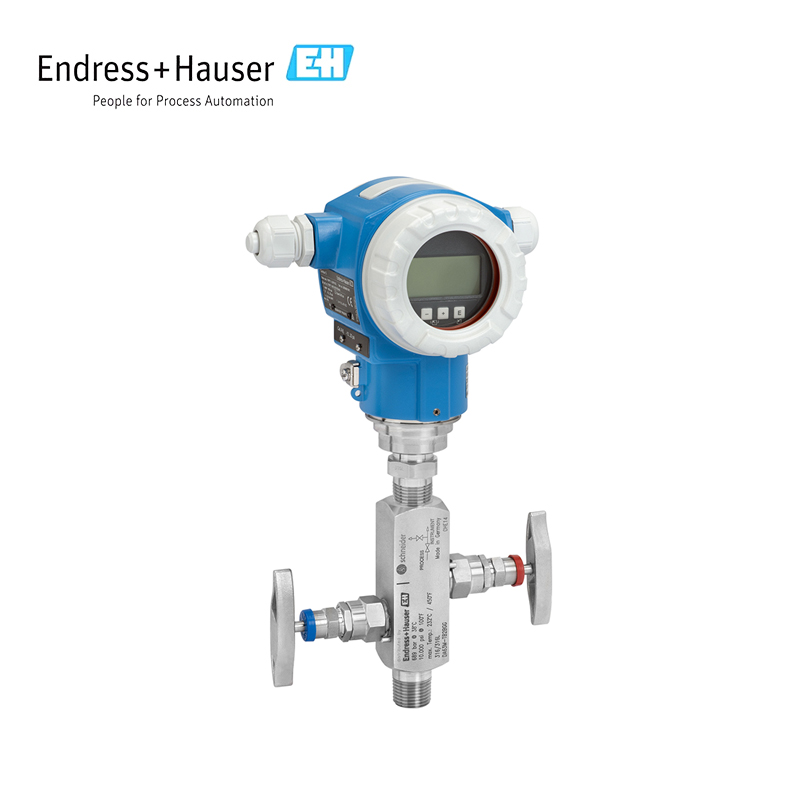

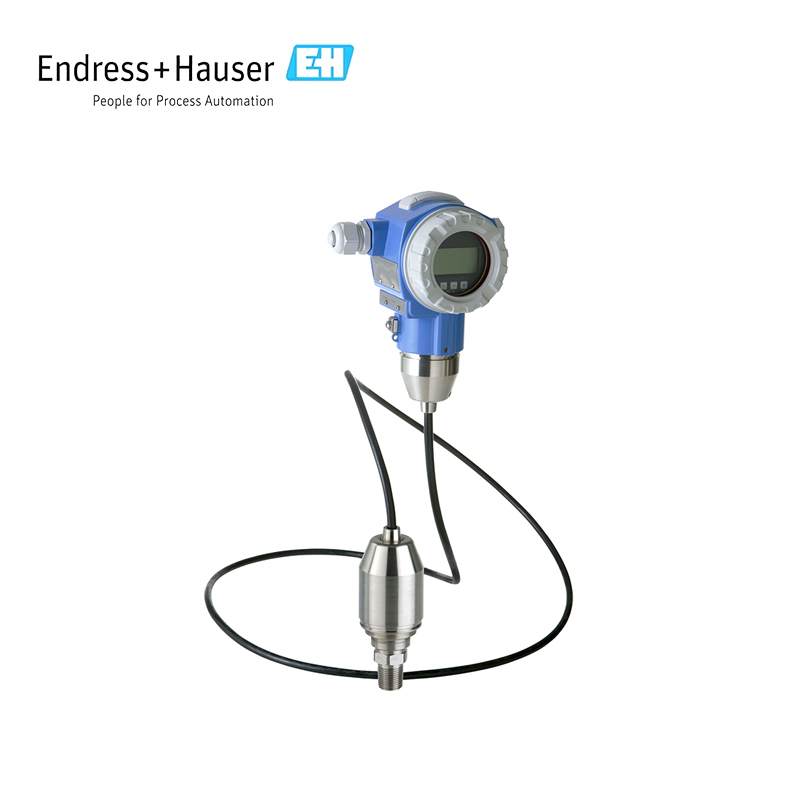

Endress Hauser PMP71 Pressure transmitter

Measurement principle:

Product positioning:

Usage scenario:The Cerabar PMP71 digital pressure measurement transmitter utilizes a metal diaphragm and is primarily intended for use in the process industry. It is capable of measuring pressure, liquid level, volume, and mass of liquids and gases. Specifically designed for high-pressure measurement applications, the PMP71 can operate at a maximum working pressure of 700 bar. It features a quick setting function and adjustable measurement range. The design complies with the IEC61508 standard, meeting SIL2/3 functional safety requirements. It is provided with a MID metrology certification, making it suitable for metering and handover purposes.

Dual-chamber aluminum or stainless steel (316L) housing

Process connection: threaded, flange

Temperature range: -40 to +125°C (-40 to +257°F)

Pressure range: +100mbar to +700bar (+1.5 to +10.500psi)

Accuracy error: ±0.05%, "Platinum type" ±0.025%

International explosion-proof protection certification, WHG overflow protection, hygienic certification, marine grade certification, SIL
