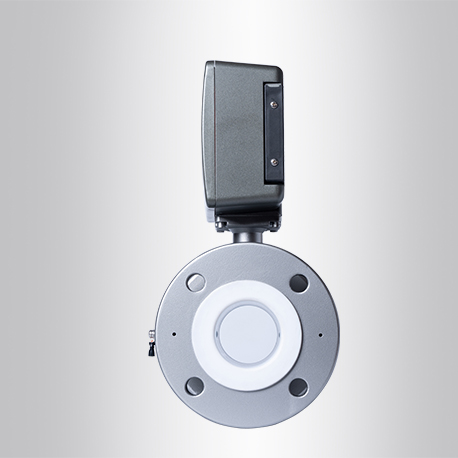

MFE-X1 high-precision electromagnetic flowmeter

Main parameters

Diameter range DN2.5~DN2400

Accuracy class 0.5/0.3

Medium temperature -25 ℃~140 ℃

Protection level IP rating: IP67 for the whole machine/IP67 for the converter, IP68 for the sensor, Complete machine: IP67/Converter: IP67;  Sensor IP68

Product Features

1. The X1 electromagnetic flowmeter converter adopts a 32-bit ADC and a 32-bit processor.

2. The unique filtering algorithm and compensation technology can make the flow measurement response faster, the flow more stable, and the accuracy level higher.

3. AC (100-230) ± 15% V, 50Hz, maximum power consumption of 10W.

4. Equipped with switch input function, it can control whether the flowmeter measures.

The MFE-X1 electromagnetic flowmeter converter can be used for process control, high-precision flow measurement, and slurry measurement. The normal measurement mode and slurry measurement mode can be configured through parameters. It adopts a 160 * 160 large screen LCD display, which can realize flow rate, total amount, alarm information, etc. It has a Chinese English menu that can be switched, and the display direction is set to 360 °.
