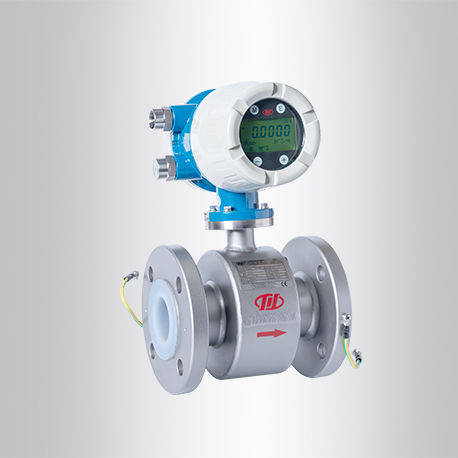

MFE-S multifunctional electromagnetic flowmeter

Main parameters

Caliber: DN2.5~DN2400

Accuracy class 0.2/0.5

Medium temperature -25 ℃~130 ℃ (explosion-proof type), -25 ℃~180 ℃ (non explosion-proof type), -25 ° C -130 ° C (explosion proof), -25 ° C -180 ° C (non explosion proof)

Protection level IP rating IP65/IP67 (sensor optional IP68) IP65/IP67 (IP68 optional for sensor)

Product Features

1. There is no obstruction or moving parts inside the measuring tube, so it will not cause additional energy loss or blockage.

2. The installation requirements are low, with only 5D for the front straight pipe section and 2D for the rear straight pipe section.

3. The measurement accuracy is high, reaching ± 0.2% of the indicated value, and it can measure flow in both positive and negative directions.

4. The instrument adopts dual frequency excitation mode, which is not affected by power frequency and works stably and reliably.

5. The measurement range is wide, up to 1500:1.

The converter of MFE-S electromagnetic flowmeter adopts unique signal processing technology and high-performance microprocessor. Its unique sensor excitation method and signal processing system can eliminate noise and other interference signals, ensuring the accuracy and stability of flow measurement.
