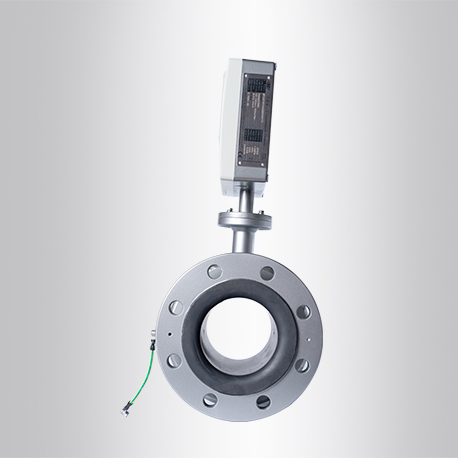

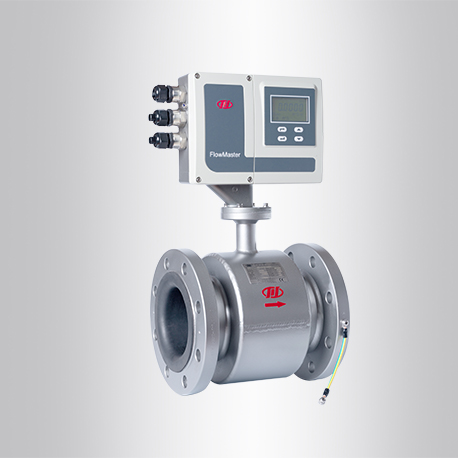

MFC universal electromagnetic flowmeter

Main parameters

Diameter range DN2.5-DN2400

Accuracy class 0.2/0.5

Medium temperature -25 ℃~180 ℃

Protection level IP rating IP65 (sensor optional IP68) IP65 (IP68 optional for sensor)

Product Features

1. The measurement accuracy is high, reaching ± 0.2% of the indicated value, and it can measure flow in both positive and negative directions.

2. The installation requirements are low, with only 5D for the front straight pipe section and 2D for the rear straight pipe section.

3. The instrument has low power consumption, less than 20VA.

4. The converter has good interchangeability and can achieve accuracy without the need for re calibration of the real current.

5. After the pipeline is emptied, it automatically detects and sets the data to zero and alarms to prevent flow meter data jumping and misoperation due to interference from the empty pipe.

The MFC series electromagnetic flowmeter operates based on Faraday's law of electromagnetic induction. This product has almost no pressure loss and is not affected by changes in fluid density, viscosity, temperature, or pressure. With a wide range, it is the most ideal instrument for measuring liquid volume flow rates with conductivity greater than 5 μ S/cm.
