Radar level gauge LR500/7ML7510/7ML7530/7ML7550/7ML7580

80GHz FMCW radar level gauge, with a measurement range up to 120 meters

It can be debugged through local buttons or remotely via SIMATIC PDM

Compatible with HART 7

The local display features backlighting and can display echo curves

Process intelligent signal processing technology possesses unique near-range echo suppression capabilities

1 mm accuracy, compliant with IEC 60770-1

Meets the requirements of API 2350, a specification of the American Petroleum Institute

Automatic false echo suppression effectively mitigates the impact of fixed interference

Low power consumption design, low carbon and environmentally friendly

For the measurement of toxic and hazardous materials, secondary sealing can be chosen for enhanced safety

Compliant with NAMUR NE107

It has a function of recording 100,000 data points, which can be used for intelligent data analysis

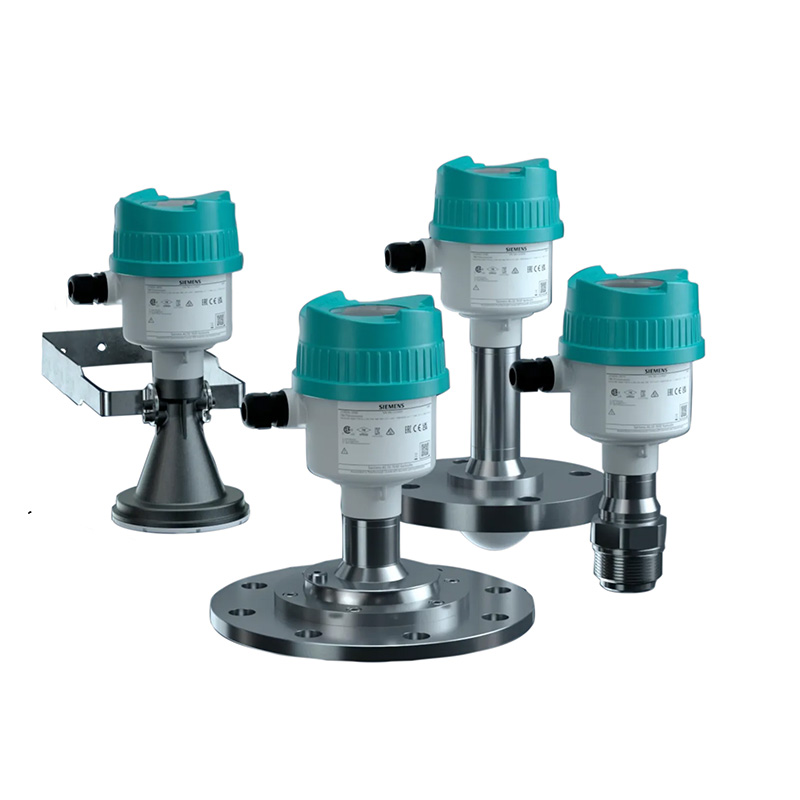

Various antenna structures, such as threaded sealing type lens antenna (LR510), flange fully plastic encapsulated lens antenna (LR530), plastic-aluminum horn type lens antenna (LR550), or flange type planar lens antenna (LR580), can meet different application needs
