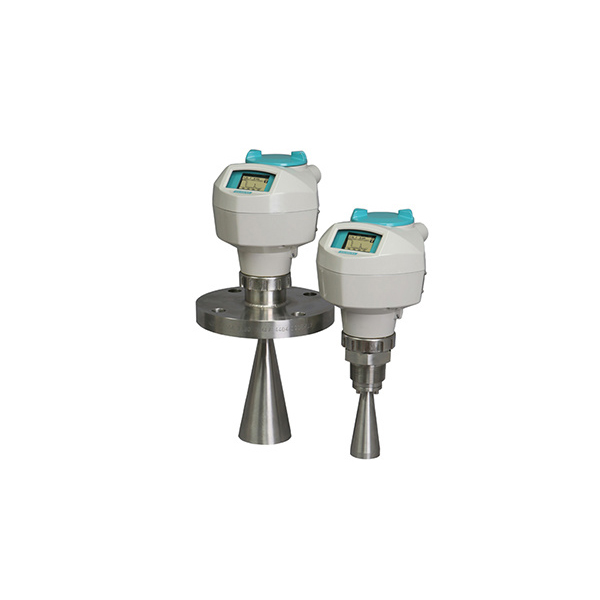

Radar level gauge LR250, horn type/7ML5431

A two-wire, 25GHz pulse radar liquid level gauge is used to measure liquids and slurries in storage tanks and process tanks, adapting to high temperatures and pressures, with a measurement range of 20m.

Advantages of the horn-type radar level gauge LR250

Graphical user navigation interface, featuring a quick start guide and simple operation

Advanced echo processing software can display echo curves, facilitating fault diagnosis

For 25GHz high-frequency applications, a small-sized horn antenna can be selected, which is easy to install

It is insensitive to installation location and obstacles inside the tank, and has strong anti-interference ability for installation pipes

Small blind zone, 50mm from the end of the horn

Supports HART®, PROFIBUS PA, or FOUNDATION FieldbusTM communication protocols

The automatic false echo suppression function enhances the measurement reliability of the instrument

Use an infrared intrinsically safe handheld programmer for local programming, or utilize SIMATIC PDM, Emerson AMS, or FDT (such as PACTware or Fieldcare, via SITRANS DTM) for remote programming

Complies with IEC61508/61511 (SIL-2) functional safety certification

High measurement accuracy compliant with IEC 60770-1 standard: 3mm
