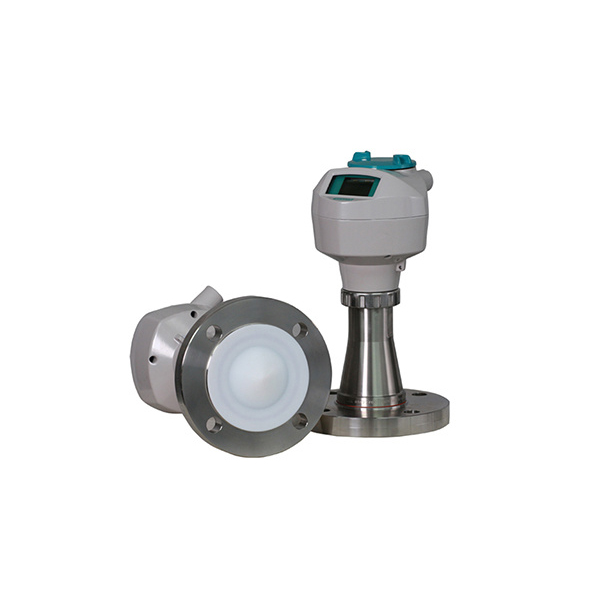

Radar level gauge LR250, fully plastic-encapsulated antenna type / 7ML5432

A two-wire, 25 GHz pulsed radar level gauge designed for measuring liquids and slurries in storage or process tanks, suitable for harsh working conditions such as corrosion

Advantages of radar level gauge LR250 fully encapsulated antenna type product

Equipped with an FDA-certified TFM 1600 PTFE fully encapsulated antenna design, it is suitable for harsh working conditions in corrosive environments such as chemical and sanitary industries

The graphical user navigation interface features a quick start guide, making operation simple

Advanced echo processing software can display echo curves, facilitating fault diagnosis

For 25GHz high-frequency applications, a small-sized horn antenna can be selected, which is easy to install

It is insensitive to installation location and obstacles inside the tank, and has strong anti-interference ability for the installation pipe

Small blind spot, 50 mm from the end of the horn

Supports HART®, PROFIBUS PA, or FOUNDATION Fieldbus communication protocols

The automatic false echo suppression function enhances the measurement reliability of the instrument

Use an infrared intrinsically safe handheld programmer for local programming, or utilize SIMATIC PDM, Emerson AMS, or FDT (such as PACTware or Fieldcare, via SITRANS DTM) for remote programming

Complies with IEC61508/61511 (SIL-2) functional safety certification
