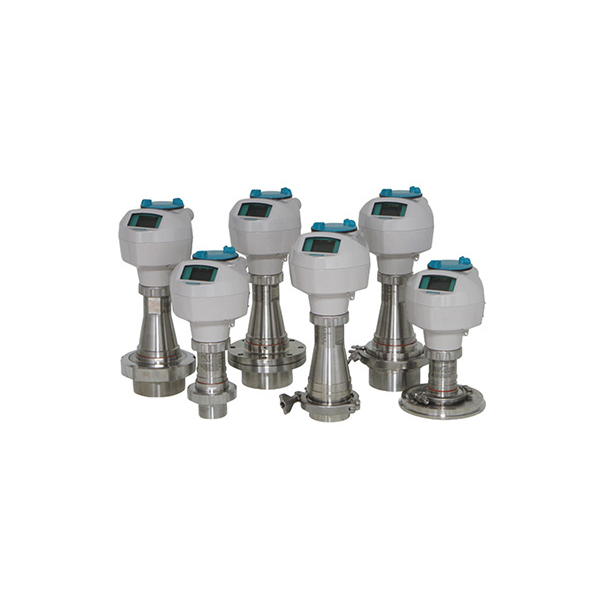

Radar level gauge LR250 hygienic type / 7ML5433

Advantages of the hygienic radar level gauge LR250

Equipped with FDA certification and USP Class VI compliance, the TFM 1600 PTFE fully encapsulated antenna design is suitable for harsh working conditions in corrosive environments such as chemical and sanitary industries

The smoothness of <0.8μ ensures cleanliness and hygiene to a large extent

Certified by 3-A, EHEDG EL Class I, and/or EHEDG EL Aseptic Class I

Graphical user navigation interface, featuring a quick start guide and simple operation

Advanced echo processing software can display echo curves, facilitating fault diagnosis

Various process connection types, including ISO 2852, DIN11851, DIN11864-1, DIN11864-2, DIN11864-3, as well as Tuchenhagen Varivent Type F and Type N

For 25GHz high-frequency applications, a small-sized horn antenna can be selected, which is easy to install

It is insensitive to installation locations and obstacles inside the tank, and has strong anti-interference ability for installation pipes

Small blind spot, 50mm from the end of the horn

Supports HART®, PROFIBUS PA, or FOUNDATION Fieldbus communication protocols

The automatic false echo suppression function enhances the measurement reliability of the instrument

Use an infrared intrinsically safe handheld programmer for local programming, or utilize SIMATIC PDM, Emerson AMS, or FDT (such as PACTware or Fieldcare, via SITRANS DTM) to achieve remote programming

Complies with IEC61508/61511 (SIL-2) functional safety certification

A two-wire, 25 GHz pulsed radar level gauge, certified for the hygienic industry, is used to measure the level of liquids and slurries in storage tanks or process tanks
