Yokogawa EJA120E Micro Differential Pressure Transmitter

The EJA120E high-performance micro differential pressure transmitter adopts monocrystalline silicon resonant sensor technology, which is suitable for measuring the flow rate, liquid level, density, and pressure of liquids, gases, or vapors. EJA120E converts measured differential pressure into 4-20mA DC current signal output, with functions such as fast response, remote setting, and self diagnosis.

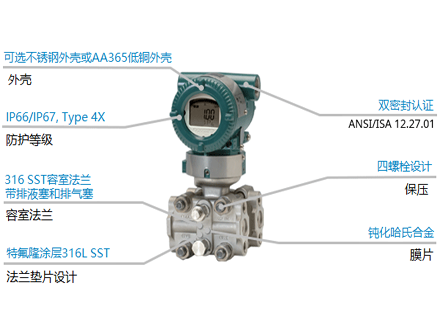

The EJA120E high-performance micro differential pressure transmitter adopts monocrystalline silicon resonant sensor technology, which is suitable for measuring the flow rate, liquid level, density, and pressure of liquids, gases, or vapors. The EJA-E series transmitters adopt process connections that comply with the IEC61518 standard, and you do not need to purchase specialized valve groups or accessories. You can make changes to it according to your own needs without limiting your design choices due to the need for a dedicated connection.

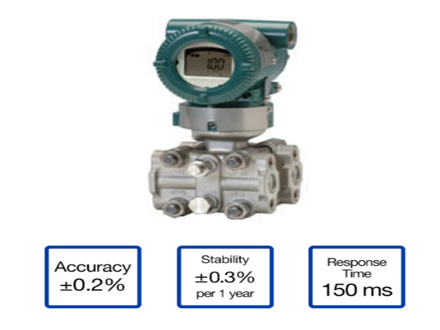

The EJA120E features include:

Accuracy ± 0.2% (optional accuracy ± 0.09%)

Stability ± 0.3%/1 year

Response time of 150 milliseconds

TUV and Exida SIL 2/3 certification

Local parameter settings (LPS)

True Draft Range design

Provide communication protocols such as HART 5/7, HART (1-5V DC) low-power type, FF fieldbus, PROFIBUS PA, and BRAN.
