Yokogawa EJA130E High Static Pressure Differential Pressure Transmitter

The EJA130E high static pressure differential pressure transmitter adopts single crystal silicon resonant sensor technology, which is suitable for measuring the flow rate, liquid level, density, and pressure of liquids, gases, or vapors. EJA130E converts the measured differential pressure into a 4-20mA DC current signal output, which can measure, display, or remotely monitor static pressure. It has functions such as fast response, remote setting, and self diagnosis.

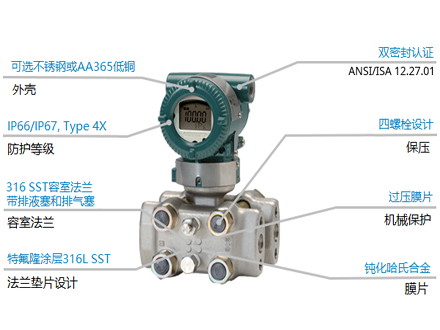

The Yokogawa EJA-E series transmitter not only provides stable and reliable measurements under changing temperatures and static pressures, but also, through its exquisite structural design, protects the sensor and maintains stability even under abnormal overpressure conditions.

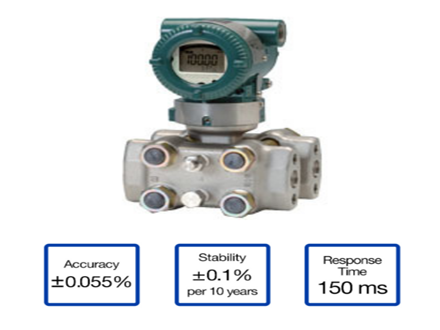

The functional features of EJA130E include:

Accuracy ± 0.055%

Stability 0.1% URL/10 years

Response time of 150 milliseconds

Maximum working pressure 4500 psi

TUV and Exida SIL 2/3 certification

Local parameter settings (LPS)

Provide communication protocols such as HART 5/7, HART (1-5V DC) low-power type, FF fieldbus, PROFIBUS PA, and BRAN.
