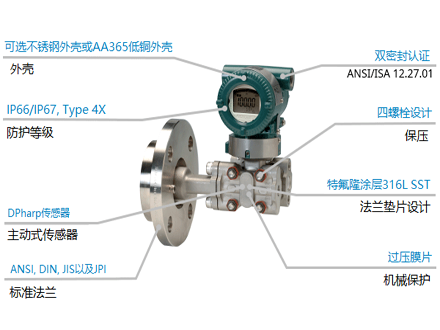

Yokogawa EJA210E flange mounted differential pressure transmitter

The EJA210E flange mounted differential pressure transmitter adopts single crystal silicon resonant sensor technology, which is suitable for measuring the liquid level and density of liquids that are prone to crystallization or precipitation. EJA210E converts the measured differential pressure into a 4-20mA DC current signal output, which can measure, display, or remotely monitor static pressure. It has functions such as fast response, remote setting, and self diagnosis.

The EJA-E series transmitter has a 10 segment signal curve characterization function, which is suitable for compensating 4-20mA analog output signals in nonlinear applications. It can be used for all applications such as tank measurement and flow measurement, where the correspondence between input pressure and output signal is clear, making the measurement more flexible and convenient.

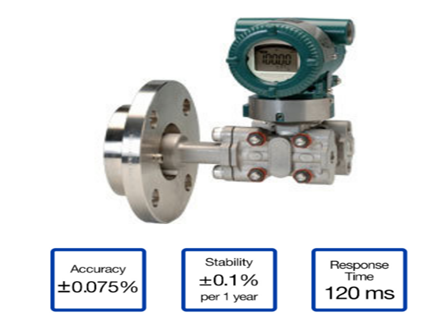

The functional features of EJA210E include:

Accuracy ± 0.075%

Stability ± 0.1% URL/1 year

Response time of 120 milliseconds

TUV and Exida SIL2/SIL3 certification

Characterization of 10 signal curves

Local parameter settings (LPS)

Provide communication protocols such as HART 5/7, HART (1-5V DC) low-power type, FF fieldbus, PROFIBUS PA, and BRAN.
